Image	Description	Industry Application	Alternative Part# A	Alternative Part# B

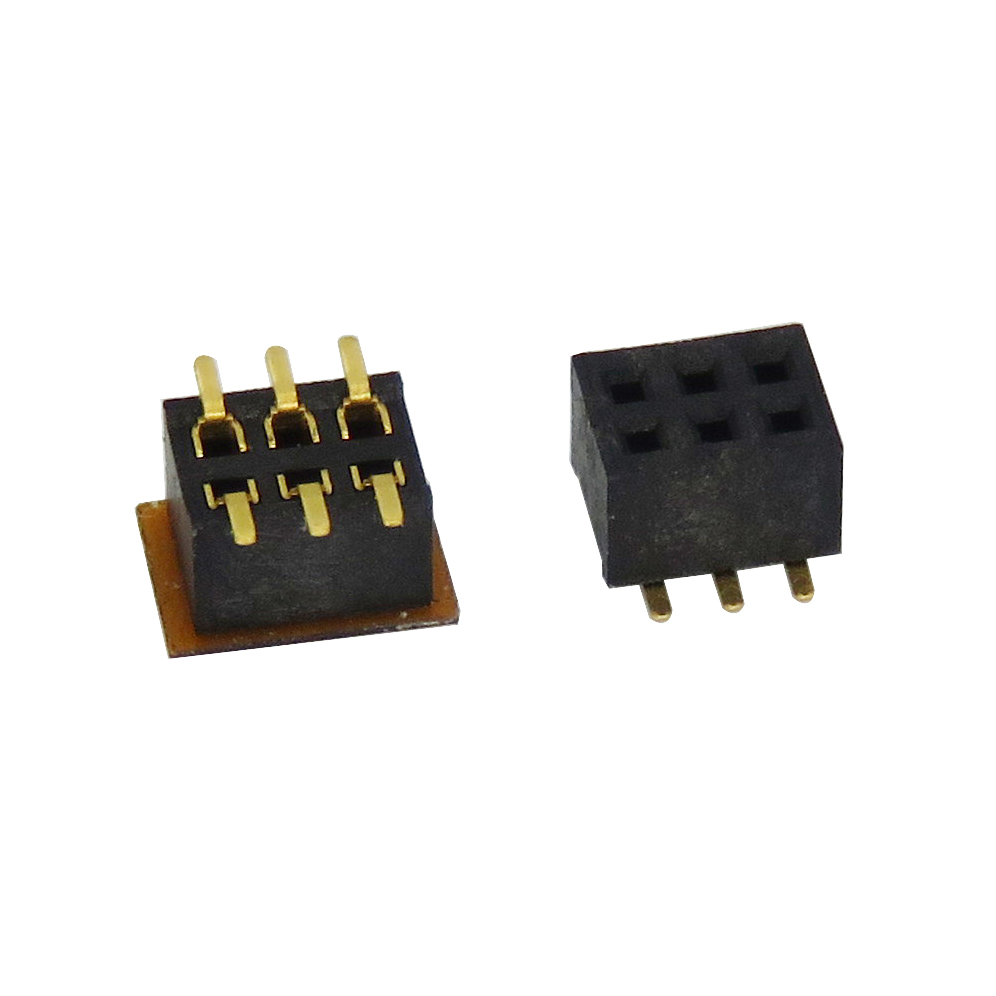

	1282-032-03-6 CONN Receptacle 2x03POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.38μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption	Data communication,Industrial Control

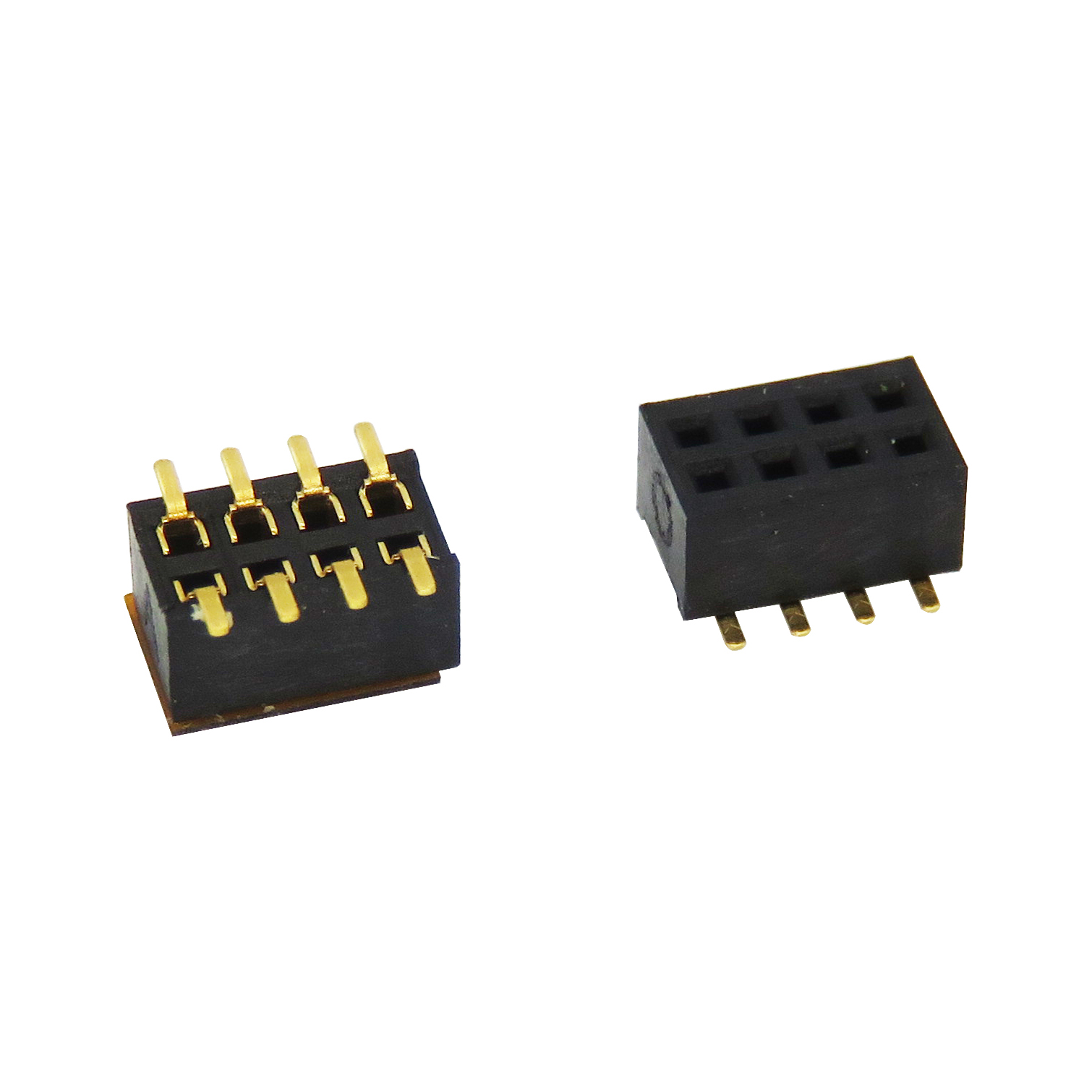

	1282-042-02-6 CONN Receptacle 2x04POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.25μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption	Data communication,Industrial Control

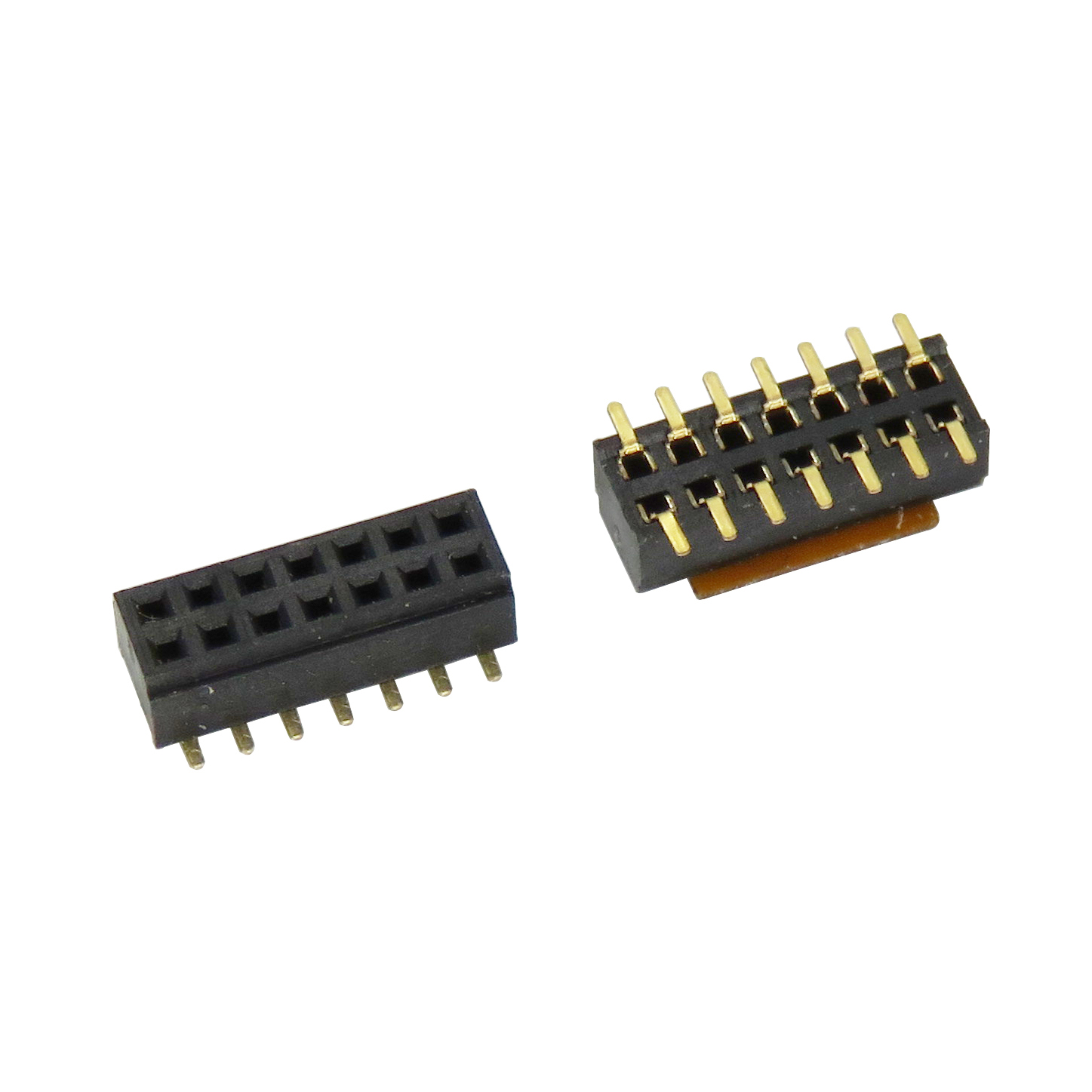

	1282-072-62-6 CONN Receptacle 2x07POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.76μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption and Concave table	Data communication,Industrial Control

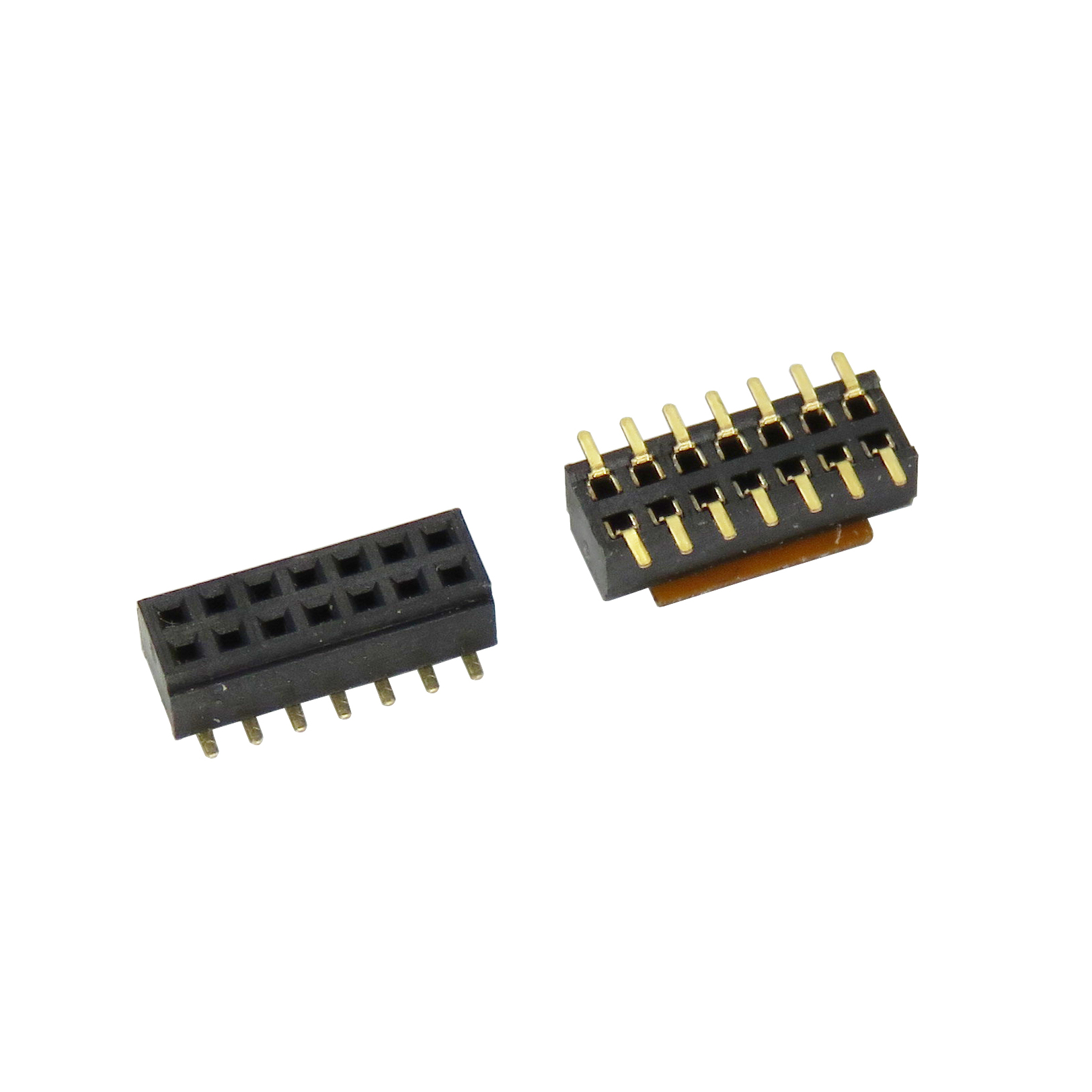

	1282-072-62-P CONN Receptacle 2x07POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.76μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption and Concave table	Data communication,Industrial Control

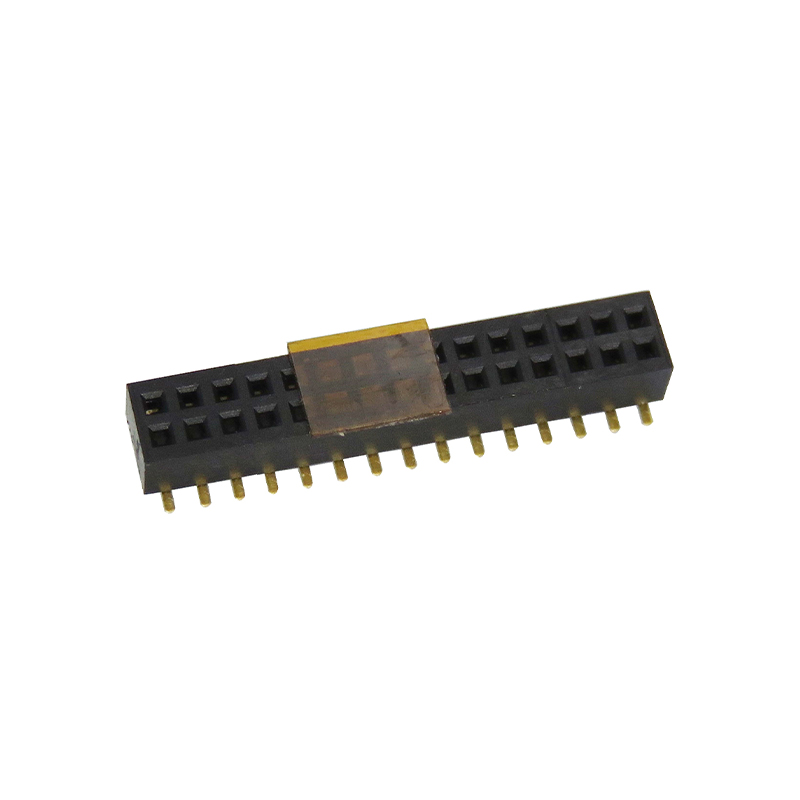

	1282-102-02-6 CONN Receptacle 2x10POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.25μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption	Data communication,Industrial Control
	1282-152-02-6 CONN Receptacle 2x15POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.25μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption	Data communication,Industrial Control

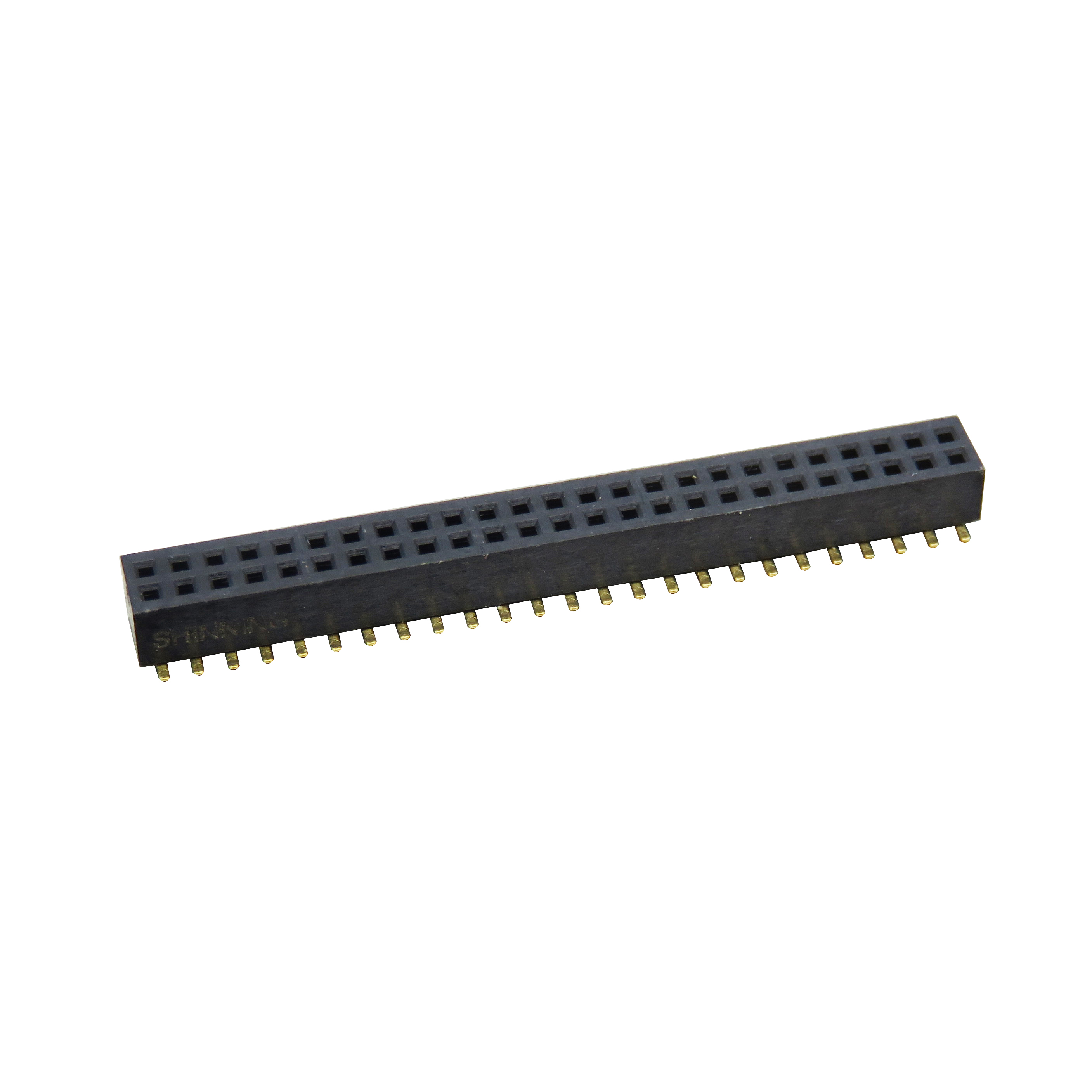

	1282-202-02-6 CONN Receptacle 2x20POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.25μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption	Data communication,Industrial Control
	1282-252-04-6 CONN Receptacle 2x25POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.76μm PA9T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption	Data communication,Industrial Control
	1282-XXX-0X-X CONN Receptacle 2x 03, 04，07，10,15, 20，25POS 1.00mm SMT Shrapnel double row colloid height 2.1 contact plating Au 0.25μm ，Au 0.38μm，Au 0.76μm PA9T ，PA6T Black UL94V-0 with Specification A 2.25/B 3.80 without positioning column with mylar Adsorption	Data communication
